Invisible Laser Visibility Fiber Laser Marking Machine 2022 Large Size for Working Area

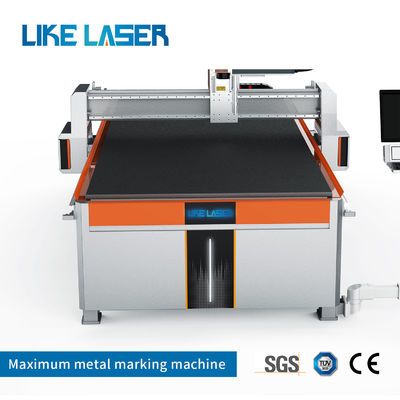

Large Image : Invisible Laser Visibility Fiber Laser Marking Machine 2022 Large Size for Working Area

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Customizable packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Contact Now

Invisible Laser Visibility Fiber Laser Marking Machine 2022 Large Size for Working Area

Description

Model NO.:	H2-1325	Applicable Material:	Metal
Cooling System:	Air Cooling	Technical Class:	Continuous Wave Laser
Laser Wavelength:	Fiber Laser	Laser Classification:	Free Electron Laser
Type:	Optical Fiber Laser Marking Machine	Marking Method:	Mask Pattern Marking
Laser Power:	100W	Laser Lifetime:	80000h
Voltage Lequirements:	220V/110V 50~60Hz	Cooling Mode:	Air Cooling
Movement Form:	Five Axis Linkage	Working Mode:	Laser Pulse
Engraving Accuracy:	0.0006mm	Preheating Time:	Less Than One Minute
Engraving Line Speed:	<7000mm/S	Certificate:	CE
Effect:	Metal Laser Marking Machine	Transport Package:	Wooden Packing
Specification:	Size: 1500mm3000mm1100mm	Trademark:	Like Laser
Origin:	Hebei	Supply Ability:	50/ Months
Package Size:	2600.00cm * 1600.00cm * 1600.00cm	Package Gross Weight:	1200.000kg
After-sales Service:	Overseas Engineer / Online After Sales	Warranty:	1 Year
Laser Visibility:	Invisible	Samples:	US$ 56000/Piece 1 Piece(Min.Order) \|
Customization:	Available \| Customized Request	Shipping Cost :	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment	Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

2022 New Large Size Working Area Laser Marking Big Format Fiber Laser Marking Machine for Sale

Application for Big Fiber Laser Marking Machine:

1.Removing coat for bathroom mirror, kichten mirror, building mirror, wall mirror, etc.

2. Remove the glass Low-E (conductive film) and carve Low-E into complex geometry

3. Surface marking of stainless steel plate / metal decorative plate
Invisible Laser Visibility Fiber Laser Marking Machine 2022 Large Size for Working Area 1

Different Sizes for your demands:

Model 1: 800mm*1200mm

Model 2: 1300*2500mm

Model 3: 1500*3000mm

PS:Customizable size

Advantages for fiber laser marking machine:

1. Excellent beam quality-The laser spot and divergence angle of fiber laser marking machine is smaller than traditional marking machine, marking more precision
2. Low use-cost: high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.
3. Maintenance-free Operation: There is no need of any maintenance for laser, or to adjust /clean the lens.
4. Long working life: using laser diode as pumping source, the working hours can reach as long as 100,000 hours.
5. New designed machine body: Humanized design more suitable for work, can save more time, using fiber to realize laser transport and the structure is compact, which makes possible to work under severe environment such as vibration, high-temperature.
6. High processing speed: 2-3 times faster than the traditional laser marking machine

Technical Parameter:

walvelength:	1064nm
Work Table	flannelette
Supported format	BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT,etc.
marking deepth	≥0.2mm (depending on material)
linear speed	≤7000mm/s
min. line width	0.01mm
min. character size	0.2mm
laser lifetime	100,000 working hours
Warranty	1 YEARS
Frequency of pulse	20 ~100HZ
Marking content	Text, pattern, picture, date, bar code, line, etc
cooling	air cooling
location	red location
power supply	AC110V/AC220V / 50Hz / 1KVA
Operation system	Windows XP, Windows 7 (32 or 64)

1) Mirror Coat Removing:
Invisible Laser Visibility Fiber Laser Marking Machine 2022 Large Size for Working Area 4

2)1200mm * 2000mm Stainless Steel Elevator Decorative Plate
Invisible Laser Visibility Fiber Laser Marking Machine 2022 Large Size for Working Area 5

Foam + Wooden Box For Safer Packing

After-sale service:

1. One year guarantee period for product quality. (man made damaged is negotiable).
2. Lifelong maintenance and spare parts supply.
3. Free training for machines installation and operation of the staffs.
4. Free samples removing or marking of customer provided.

Certificate center:
Invisible Laser Visibility Fiber Laser Marking Machine 2022 Large Size for Working Area 7

Company Information:

Warmly welcome you visit our factory!!!

Warmly welcome you contact us directly for more information!!!

1.Supported by the Shijiazhuang City Government
2. Cooperate with the Zhejiang University, update for technology
3. We are the manufacturer, our price are more competitive.
4. With 13 years history on reseaching and producing all kind of laser machine
5.Our company welcomes AGENTS all over the world
Invisible Laser Visibility Fiber Laser Marking Machine 2022 Large Size for Working Area 8

Our Exhibitions: Invisible Laser Visibility Fiber Laser Marking Machine 2022 Large Size for Working Area 9
