Customizable LED Bathroom Mirror Art Glass Production Line Laminator

Customizable LED Bathroom Mirror Art Glass Production Line Laminator
Customizable LED Bathroom Mirror Art Glass Production Line Laminator Customizable LED Bathroom Mirror Art Glass Production Line Laminator Customizable LED Bathroom Mirror Art Glass Production Line Laminator Customizable LED Bathroom Mirror Art Glass Production Line Laminator Customizable LED Bathroom Mirror Art Glass Production Line Laminator Customizable LED Bathroom Mirror Art Glass Production Line Laminator

Large Image :  Customizable LED Bathroom Mirror Art Glass Production Line Laminator

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Customizable packaging
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Contact Now

Customizable LED Bathroom Mirror Art Glass Production Line Laminator

Description
Model NO.: LK-Y1828D Name: Mirror Laser Engraving Machine
Laser Power: 120W Laser Lifetime: 100000h
Product Name: Mirror Laser Sandblasting Machine Name2: Glass Mirror Laser Sandblasting Drilling Machine
Role: Laser Sandblasting Or Drilling Laser Source: Glass Sandblasting Or Drilling Exclusive
Processing Materials: Glass And Mirrors Preheating Time: Less Than One Minute
Engraving Line Speed: <8000mm/S Certificate: CE
Maximum Glass Thickness: 20mm Minimum Aperture: 0.3mm
Required Voltage: Customizable Dimension(L*W*H): 3000mm*1500mm*1100mm
Transport Package: Wooden Packing Specification: Size: 1500mm*3000mm*1100mm
Trademark: Like Laser Origin: Hebei
Supply Ability: 50/ Months Warranty: 2 Yaer
Type: Vertical Glass Cutting Plotter Structure: Vertical
Control System: Industrial Computer Glass Washing Machine Type: Ultrasonic Glass Washing Machine
After-sales Service: 2 Yaer Samples: US$ 50000/Piece 1 Piece(Min.Order) | Request
Customization: Available | Customized Request




Products Description
Product Name: vertical glass cutting plotter
Model: LK-Y1828D

LED Bathroom Mirror Art Glass Production Line Laminator/Vertical Sticker Cutting Film Plotter/Sandblasting Machine

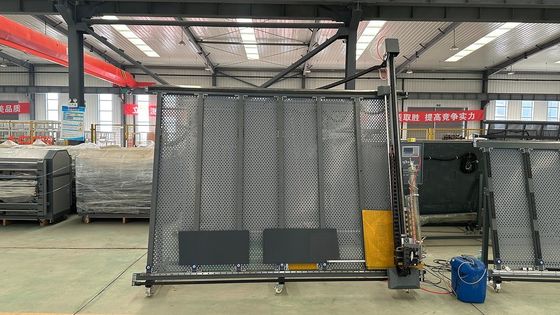

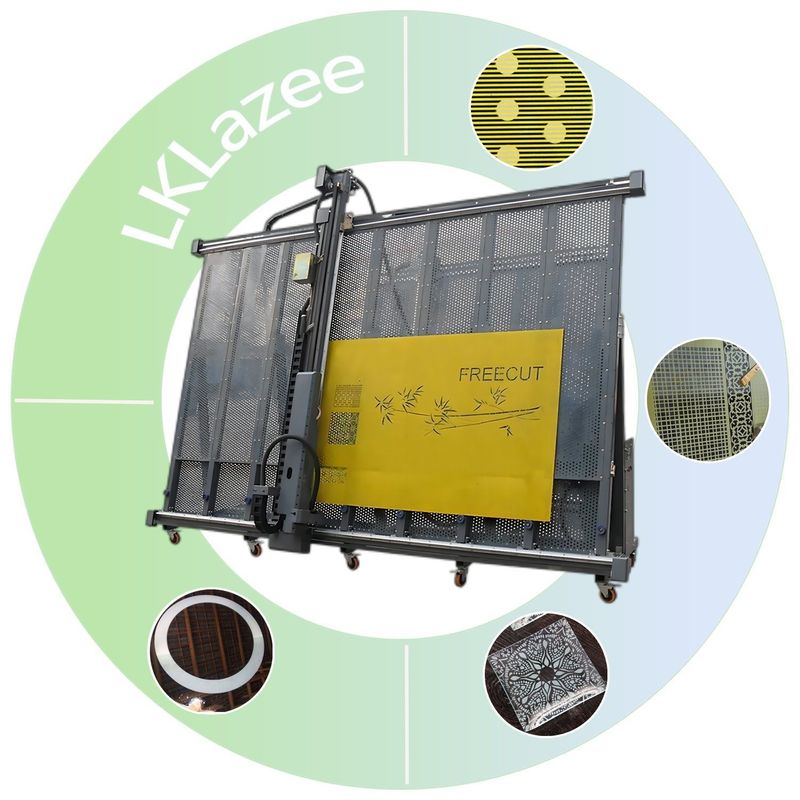

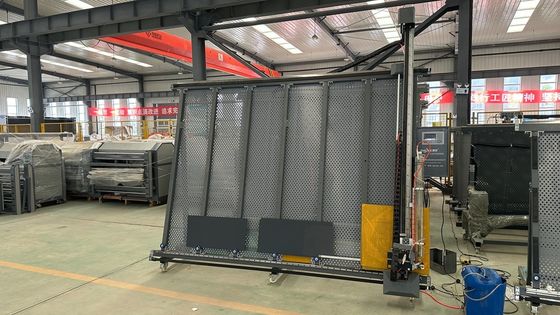

Vertical  Glass cutting plotter
Traditionally, the masking PVC vinyl film is cut using a small cutting plotter, then pasted onto the glass for processing.
Now, we have completely changed the production process. By using our creative ArtCut Vertical Cutting Plotter, you paste the vinyl film on the glass, cut the pattern directly on the sticker, then peel off the parts where the glass is to be sandblasted or acid
etched



How the plotter works:

With CNC technology, this vertical vinyl film cutting plotter works with "ArtEngrave" and "NcStudio" software to create drawings and control the machine. The cutter/laser is driven by three motors on the X, Y, and Z axes. The production process has totally changed, we now only need to paste the sticker onto glass and then cut the designs directly on the glass, which saves a great deal of time and effort. Corel Draw, AutoCAD, Adobe Illustrator, etc., can also be used to design the drawings. For further processing, you can sandblast the glass, acid etch the glass, or deep-carve the glass.
LED Bathroom Mirror Art Glass Production Line Laminator/Vertical Sticker Cutting Film Plotter/Sandblasting Machine
LED Bathroom Mirror Art Glass Production Line Laminator/Vertical Sticker Cutting Film Plotter/Sandblasting MachineLED Bathroom Mirror Art Glass Production Line Laminator/Vertical Sticker Cutting Film Plotter/Sandblasting Machine



What are the differences between using a blade cutter and a laser cutter?
1
It is possible that the blade will move out of the glass due to the measurement error, and when it returns to the glass, it will strike the edge of the glass. In order to prevent the blade from breaking, the laser can cut to the edge of the glass while the blade must leave a 3 mm margin from each edge of the glass.
2
The laser can be used to add additional etching to the glass surface after it has been sandblasted or acid etched
3
The laser leaves scratches on glass surface, while the blade pressure is adjustable, so it does not hurt the glass/mirror surface.In the case of sandblasting/acid etching, the scratches created by laser would not affect the result, since the scratches would be covered by the sandblasting/acid etching
4
To make smart touching mirrors, the laser can be used to remove the mirror coatings.
5
 After cutting around 50 pieces of glass sheets (depending on the complexity of the design), the blade will wear out, so it will need to be replaced every few days. Lasers have a life of more than 1000 hours, and may only need to be replaced after half a year or a year.

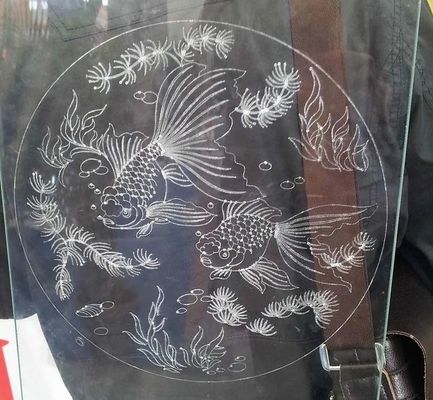

Sample Display

LED Bathroom Mirror Art Glass Production Line Laminator/Vertical Sticker Cutting Film Plotter/Sandblasting MachineLED Bathroom Mirror Art Glass Production Line Laminator/Vertical Sticker Cutting Film Plotter/Sandblasting Machine

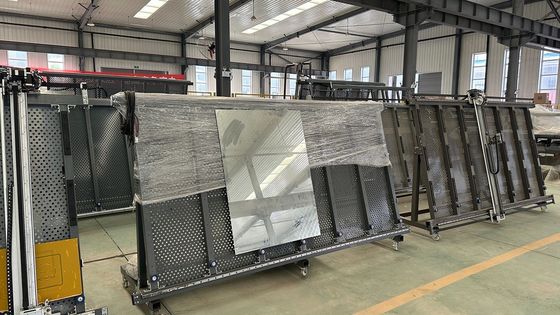

Packaging & Shipping
LED Bathroom Mirror Art Glass Production Line Laminator/Vertical Sticker Cutting Film Plotter/Sandblasting Machine


Companies and factories

LED Bathroom Mirror Art Glass Production Line Laminator/Vertical Sticker Cutting Film Plotter/Sandblasting Machine
HEBEI LIKE LASER EQUIPMENT CO.,LTD was established in July 2003 in shijiazhuang, the provincial capital of hebei Province in China. It is one of the biggest laser equipment manufacturers in Northern China. The main products of our company are fiber laser cutting machine, metal & nonmetal laser cutting machine, CO2 laser cutting machine, laser engraver machine,Glass Engraving Machine. Our machines can be used to cut or engrave all kinds of materials such as carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, wood, acrylic, bamboo, jade, crystal, plastic, cloth, paper, leather, rubber, ceramic, glass and other metal or nonmetal materials

After 17 years development, we have passed ISO90001 international quality system certification, European Union CE certification and American certification.
LED Bathroom Mirror Art Glass Production Line Laminator/Vertical Sticker Cutting Film Plotter/Sandblasting MachineIn the 1990s, Mr. ma returned from studying in England and set up our factory with his three students in Jinan, Shandong province, northern China. our early research direction was machine tools and automation. in the early 20th century, we began to focus on research and production of laser equipment. at the end of 2002, the factory moved to Shijiazhuang, capital of Hebei province, China, according to the requirements of investors.

Now the company owns about 50 employees, most of them having bachelor's degree to guarantee our high quality and professional service. Each year, we sell more than 1000 sets of machine to USA, Canada, Australia, Europe, Southeast Asia, Africa and other 90 countries and areas. We also supply OEM service for more than 10 foreign manufactures.
