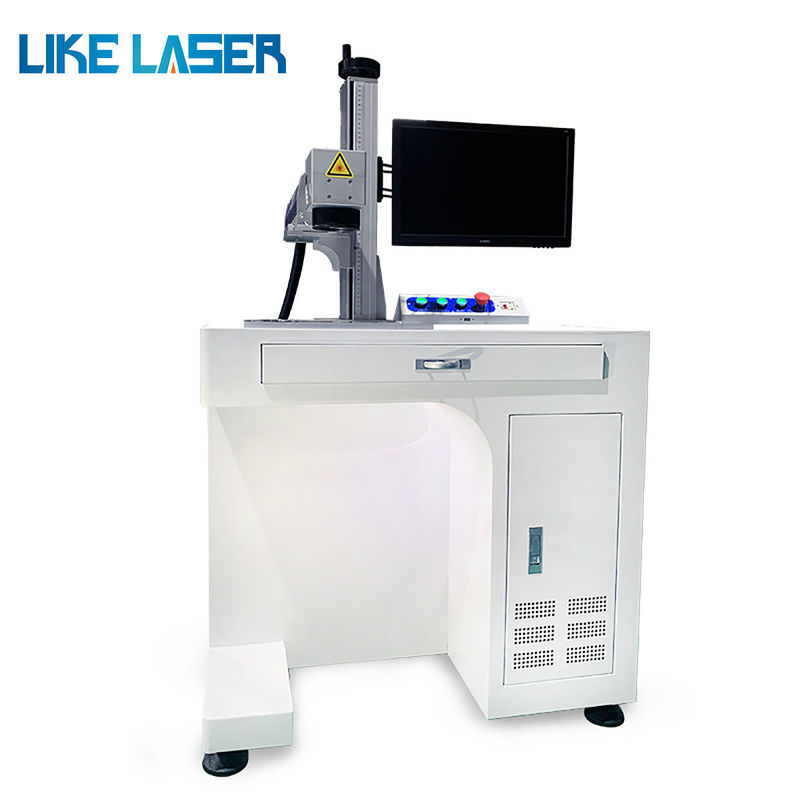

Desktop Raycus Jpt Ipg Max 20W 30W 50W 100W Fiber Laser Marking Machine

Large Image : Desktop Raycus Jpt Ipg Max 20W 30W 50W 100W Fiber Laser Marking Machine

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Customizable packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Contact Now

Desktop Raycus Jpt Ipg Max 20W 30W 50W 100W Fiber Laser Marking Machine

Description

Model NO.:	LIKE-F-DLM-001	Laser Wavelength:	Fiber Laser
Laser Classification:	Free Electron Laser	Type:	Optical Fiber Laser Marking Machine
Marking Method:	Mask Pattern Marking	Laser Lifetime:	100000h
Certificate:	CE	Weight (Kg):	300kg
Marking Area:	175mm*175mm	Laser Power:	20W/30W/50W/70W/100W/200W
Marking Depth:	0-1.2mm	Applicable Industries:	Hotels, Garment Shops, Building Material Shops
Working Accuracy:	0.001mm	Laser Source Brand:	Raycus Max
Graphic Format Supported:	Ai, BMP, Dst, Dwg, Dxf, Dxp, Las, Plt, Other	Name:	Fiber Laser Engraver
Machine Type:	Standard Desktop	Marking Speed:	0-7000mm/S
Marketing Type:	Hot Product	Directory:	Fiber Laser Marking Machine
Transport Package:	Wooden Packing	Specification:	190cm * 150cm * 70cm
Trademark:	LIKE LASER	Origin:	Hebei
Supply Ability:	50/ Months	After-sales Service:	3 Years
Warranty:	3 Years	Laser Visibility:	Invisible
Applicable Material:	Metal	Cooling System:	Air Cooling
Technical Class:	Continuous Wave Laser	Samples:	US$ 80000/Piece 1 Piece(Min.Order) \| Request
Customization:	Available \| Customized Request

Desktop Raycus Jpt Ipg Max 20w 30w 50w 100w Fiber Laser Engraving Marking Machine For Yeti Cups Cnc Machine Price

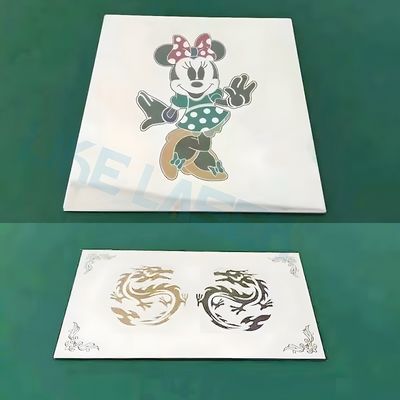

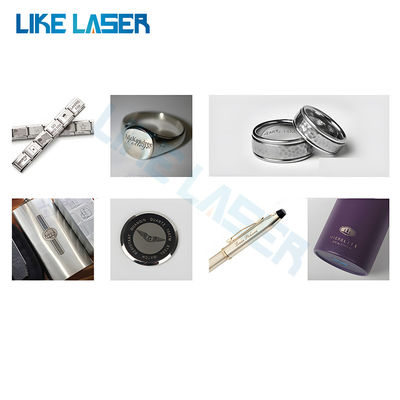

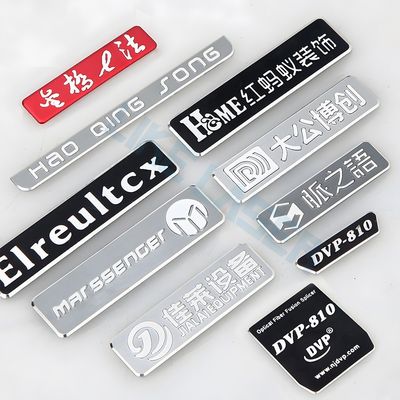

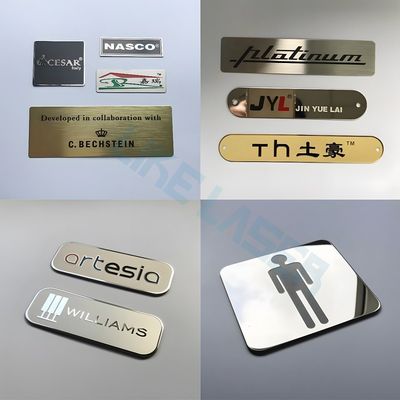

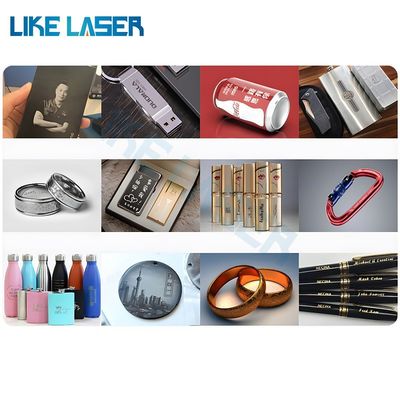

Application Materials

Fiber laser marking machine can work with most metal marking applications, such as

Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials,such as ABS, Nylon, PES, PVC, Makrolon.

Desktop Raycus Jpt Ipg Max 20W 30W 50W 100W Fiber Laser Marking Machine 1

Fiber laser marking machine technical parameters
Laser Type	Fiber laser
Laser Power	20W 30W 50W 70W 100W
Model	LIKE-FLM-20W LIKE-FLM-30W LIKE-FLM-50W LIKE-FLM-70W LIKE-FLM-100W
Laser Wavelength	1064nm
Marking Area	7575mm 110110mm 150mm150mm 175mm175mm 200200mm 300300mm
Marking Depth	≤1.2mm
Marking Speed	10000mm/s
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life-span of Fiber Laser Module	100 000hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode	Air cooling--Built-in
Temperature of Operation Environment	15ºC~35ºC
Power Input	220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement	<400W
Communication Interface	USB
Machine Dimension/after package	9208301160mm
Net Weight/gross weight	170/200kg
Optional	Rotary Device, Moving Table, other customized Automation

Desktop Raycus Jpt Ipg Max 20W 30W 50W 100W Fiber Laser Marking Machine 4

HEBEI LIKE LASER,
is established in July 2003 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American certificate and are certified to 9001.

Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc,
more than 120 countries and areas, and supply OEM service for more than 30 manufactures.

Our Products includes All kind of
1. Laser marking machine(Fiber/CO2/UV/Green light)
2.CNC Plasma cutting machine
3. Laser cutting machine
4. CNC knife cutting machine
5. CNC router and so on.

We can also customized non-standard assist equipment as your detailed work requirements.

Desktop Raycus Jpt Ipg Max 20W 30W 50W 100W Fiber Laser Marking Machine 12

Desktop Raycus Jpt Ipg Max 20W 30W 50W 100W Fiber Laser Marking Machine 21
