3W 5W 10W UV Laser Engraving Marking Cutting Machine for Metal Plastic Glass PCB

3W 5W 10W UV Laser Engraving Marking Cutting Machine for Metal Plastic Glass PCB

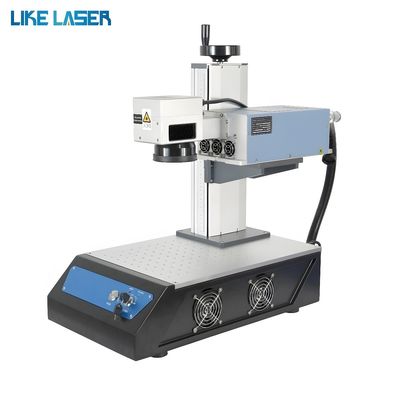

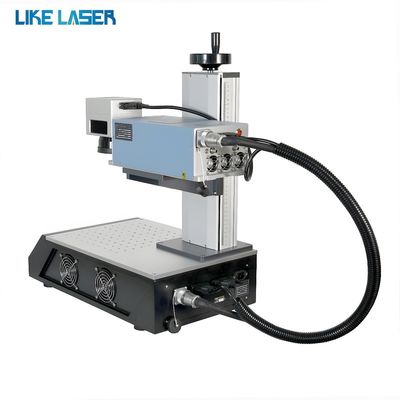

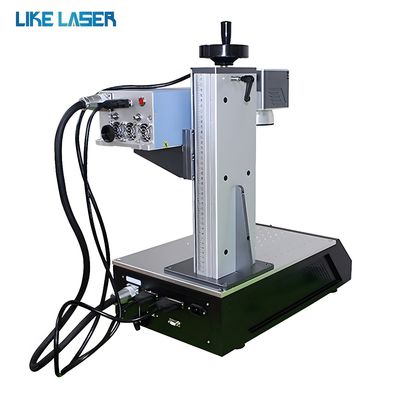

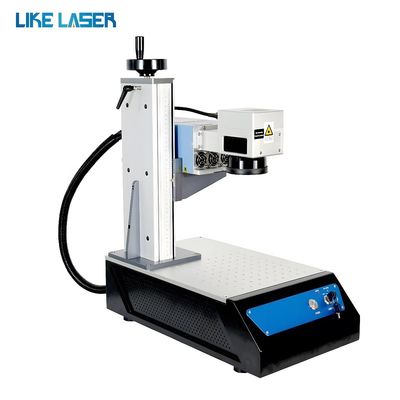

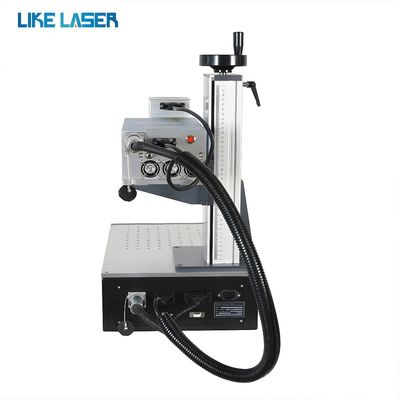

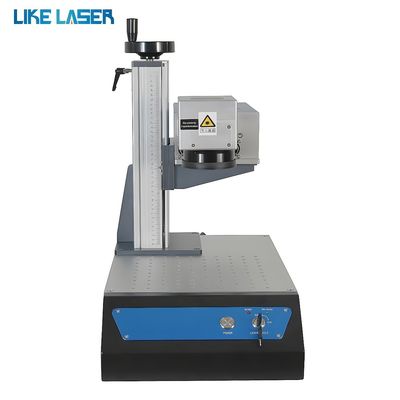

Portable UV Laser Marking Machine



Due to the extremely small focus spot and the small processing heat-affected zone, the ultraviolet laser can perform ultra-fine
marking and special material marking. It is the first choice for customers who have higher requirements for marking effects. The
marking material range includes all plastics, all glass, most metals, wood materials, leather, ceramics, etc.

Product Parameters



UV Laser Marking Machine Technical Parameters
Peak Laser Power	3W/5W/8W/10W
Wavelength	355nm
Repetition Precision	0.01mm
Marking Depth	≤0.5mm
Marking Speed	<8000mm/s
Cooling Mode	Water Cooling
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	10ºC-35ºC
Warranty	1 Year
Beam Quality	<2M2
Laser Pulse Frequency	20-200Khz
Humidity	5% to 75% (Free of Condensed Water )
Gross Power	<1200W
Min.Line Width	0.02mm
Min.Character	0.5mm
Power source	AC110V/220V± 10%, 50/60HZ
Processing Area	50*50mm/110*110mm/175*175mm/200*200mm(Optional)
System Composition	Laser,Controller,Imported Galvo scanner ,Lens ,Computer

HEBEI LIKE LASER,
is established in July 2003 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American certificate and are certified to 9001.

Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc,
more than 120 countries and areas, and supply OEM service for more than 30 manufactures.

Our Products includes All kind of
1. Laser marking machine(Fiber/CO2/UV/Green light)
2.CNC Plasma cutting machine
3. Laser cutting machine
4. CNC knife cutting machine
5. CNC router and so on.

We can also customized non-standard assist equipment as your detailed work requirements.

Please kindly tell us following information to get a quote:
* Which Material you need to marking?
* How about their maximum thickness?
* How about their maximum surface?
* Skype & WhatsApp
